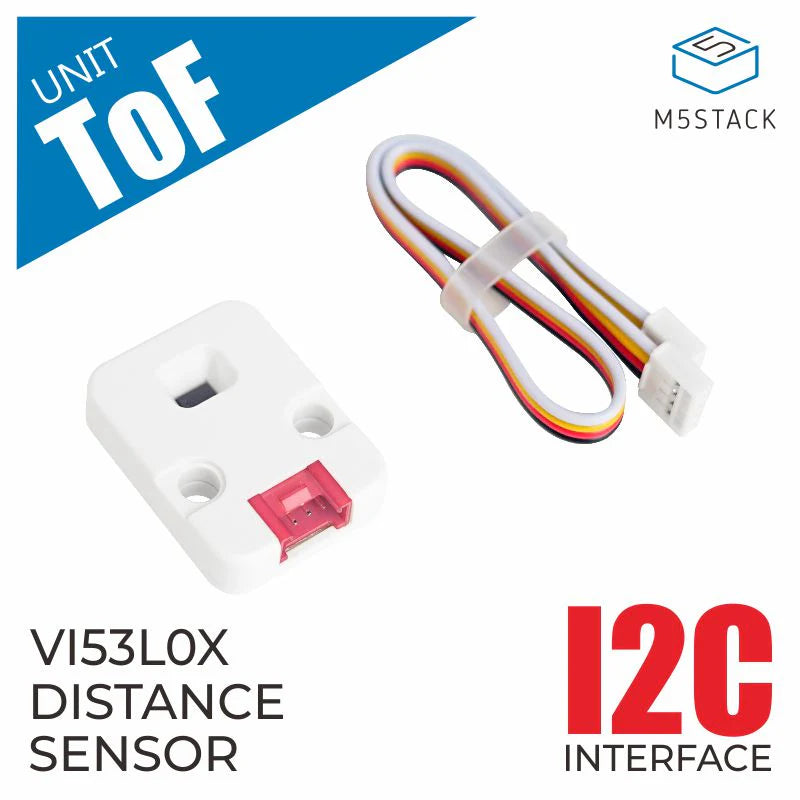

Distance Ranging Sensor Unit

Unit ToF is a laser-ranging Unit. It integrates the VL53L0X laser-ranging module, which calculates the distance between the emission point and the object detected by measuring the round-trip time of the laser signal. Unlike traditional ranging, it can provide accurate distance measurement data regardless of the reflectivity of the target. Emitting laser light with a wavelength of 940nm, it can measure an absolute distance of up to 2m in less than 30ms.

Features

• Maximum measurement distance: 2 meters
• Measurement accuracy: ±3%
• Laser wavelength: 940nm
• 2 x LEGO compatible holes
• Development Platform
  • UiFlow1
  • UiFlow2
  • Arduino IDE

Includes

• 1 x Unit ToF
• 1 x HY2.0-4P Grove Cable (20cm)
